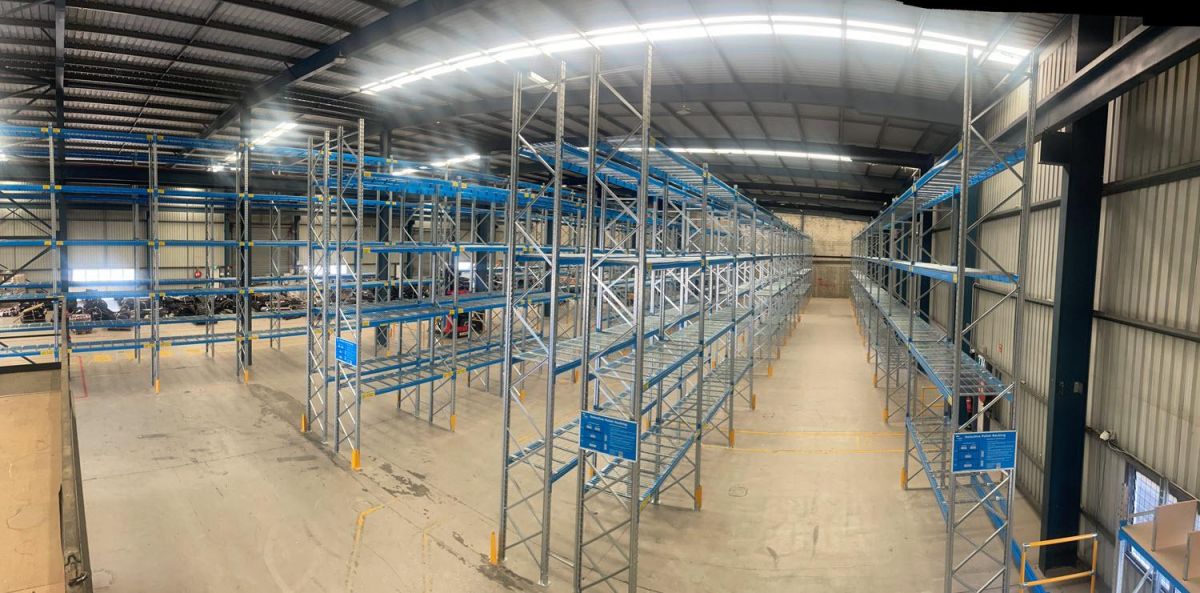

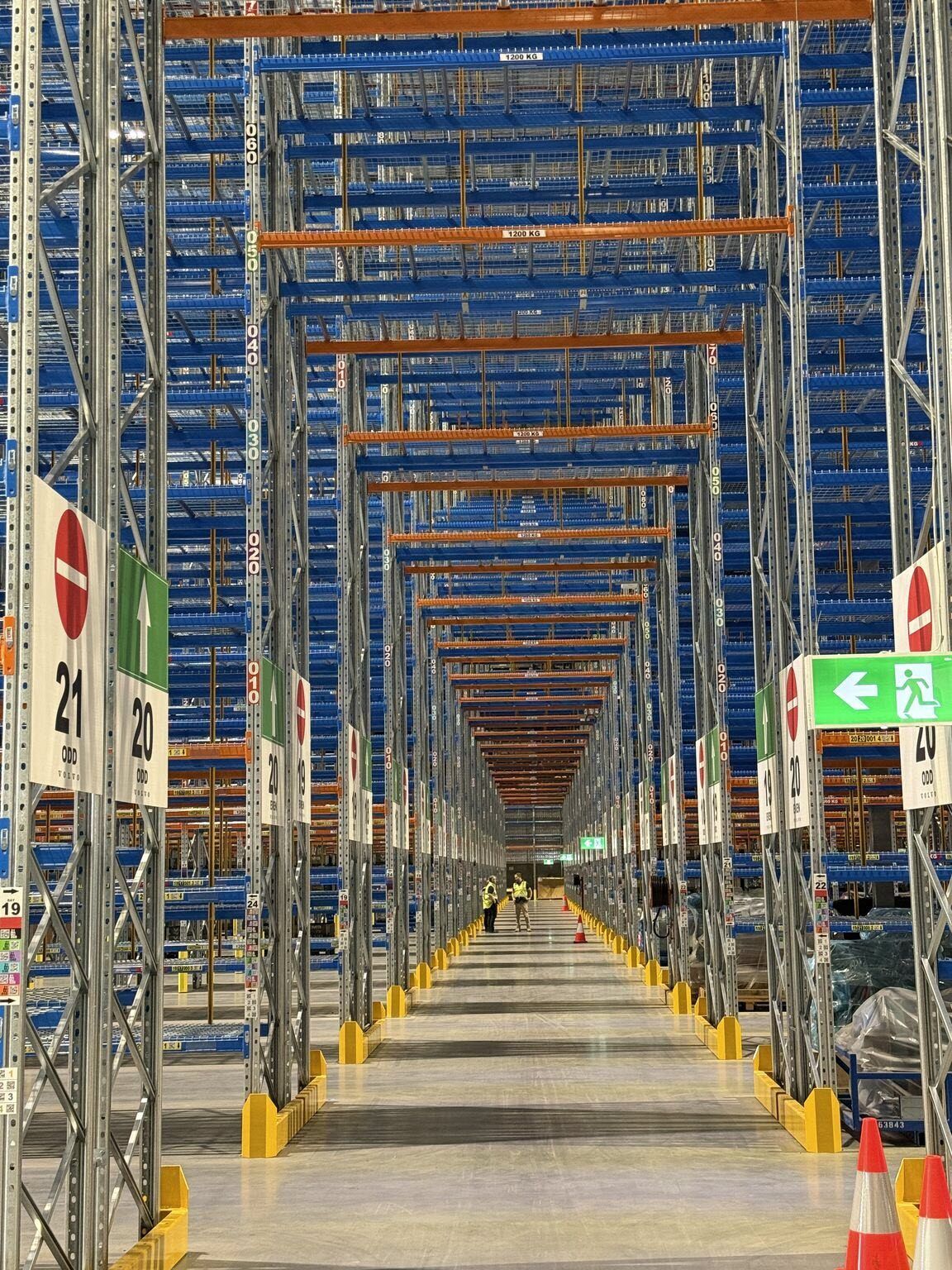

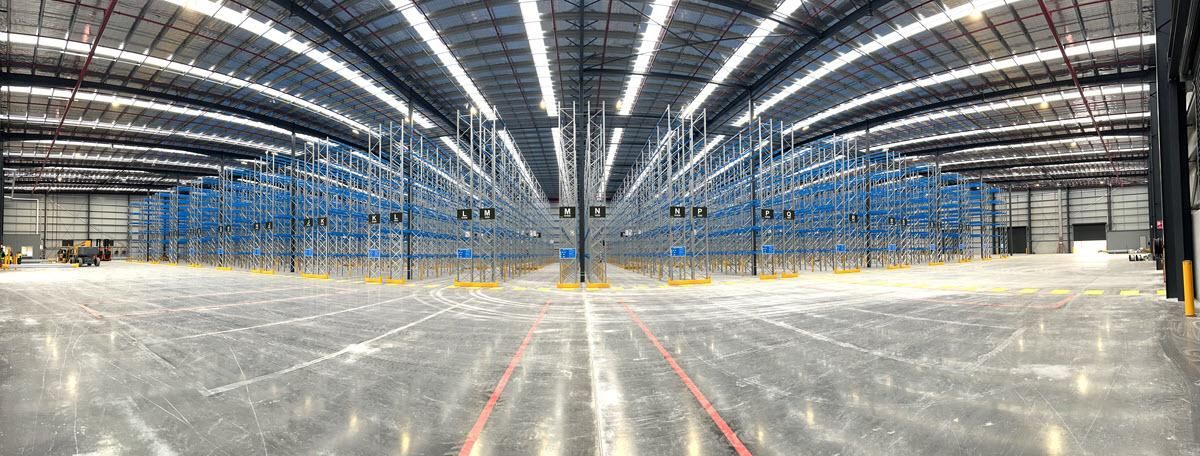

Selective Pallet Racking

Pallet racking that provides direct access to every pallet. Ideal for low turnover of stock with a large variation in product lines.

APC selective pallet racking is the most popular racking system for palletised goods. This system offers 100% selectivity, allowing full access to all pallets. As each pallet is easily accessible, stock control factors such as Use By Dates are easy to manage.

Selective Pallet Racking can make the best possible use of the building height and is ideal for warehouses that require a large number of Stock Keeping Units (SKU's) with reasonably low volumes of each SKU. Individual beam levels can be easily adjusted if product heights change.

Selective Pallet Racking can be accessed by a large range of materials handling equipment including reach trucks, counterbalanced forklifts, turret trucks, walkie stackers and stock-pickers. It is important to look at the features of your materials handling equipment as it may be better suited for a different type of pallet racking.

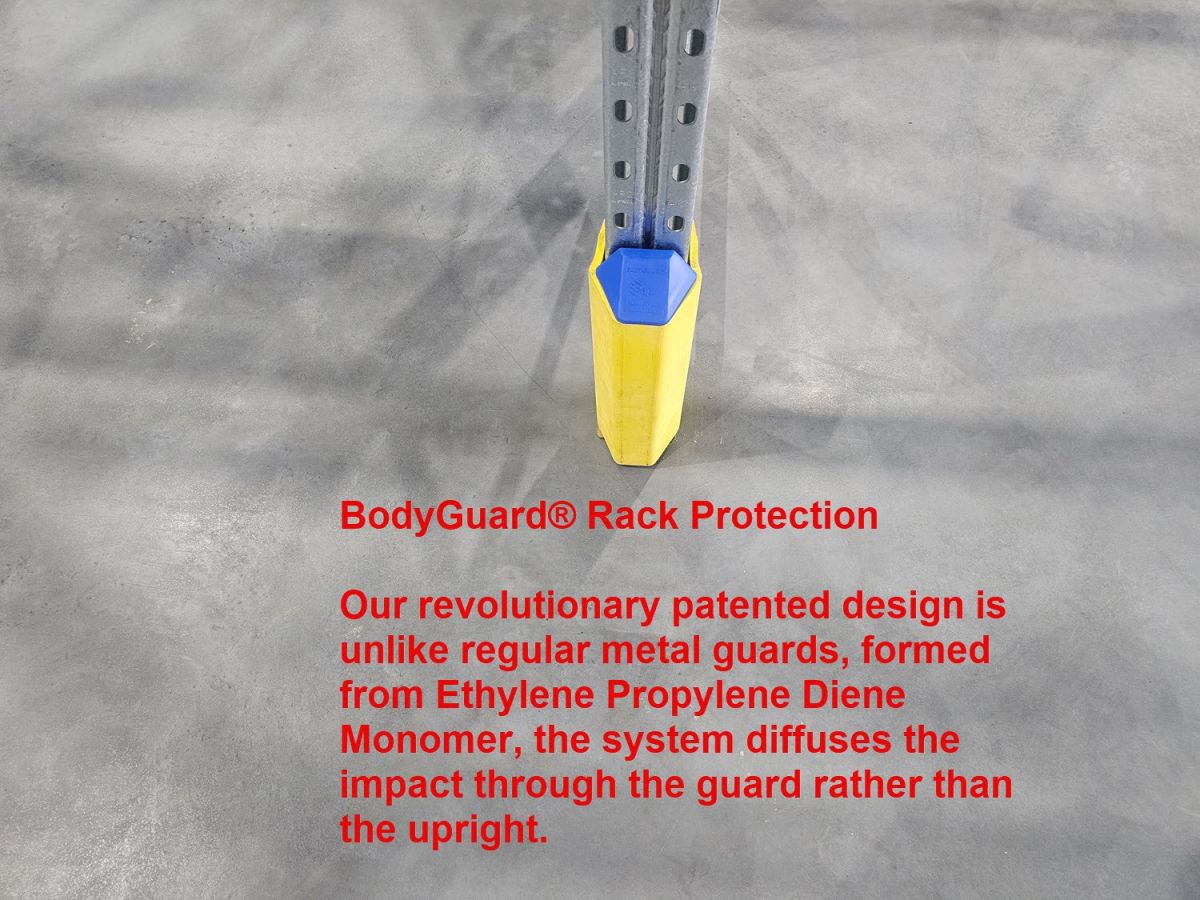

There are a large range of accessories available and a comprehensive selection of racking protection to minimise accidental impact from pallets and forklifts over time.

Racking Protection Racking Inspection Services

Colours

Blaze Blue Beams
Galvanised Frame

Custom colours available upon request.

Key Features and Benefits

  • Easy beam adjustment accommodates variable pallet heights
  • Each pallet can be located and moved individually (100% Accessibility)
  • Compatible with most handling equipment
  • Frames are constructed from roll formed steel, providing strength and rigidity

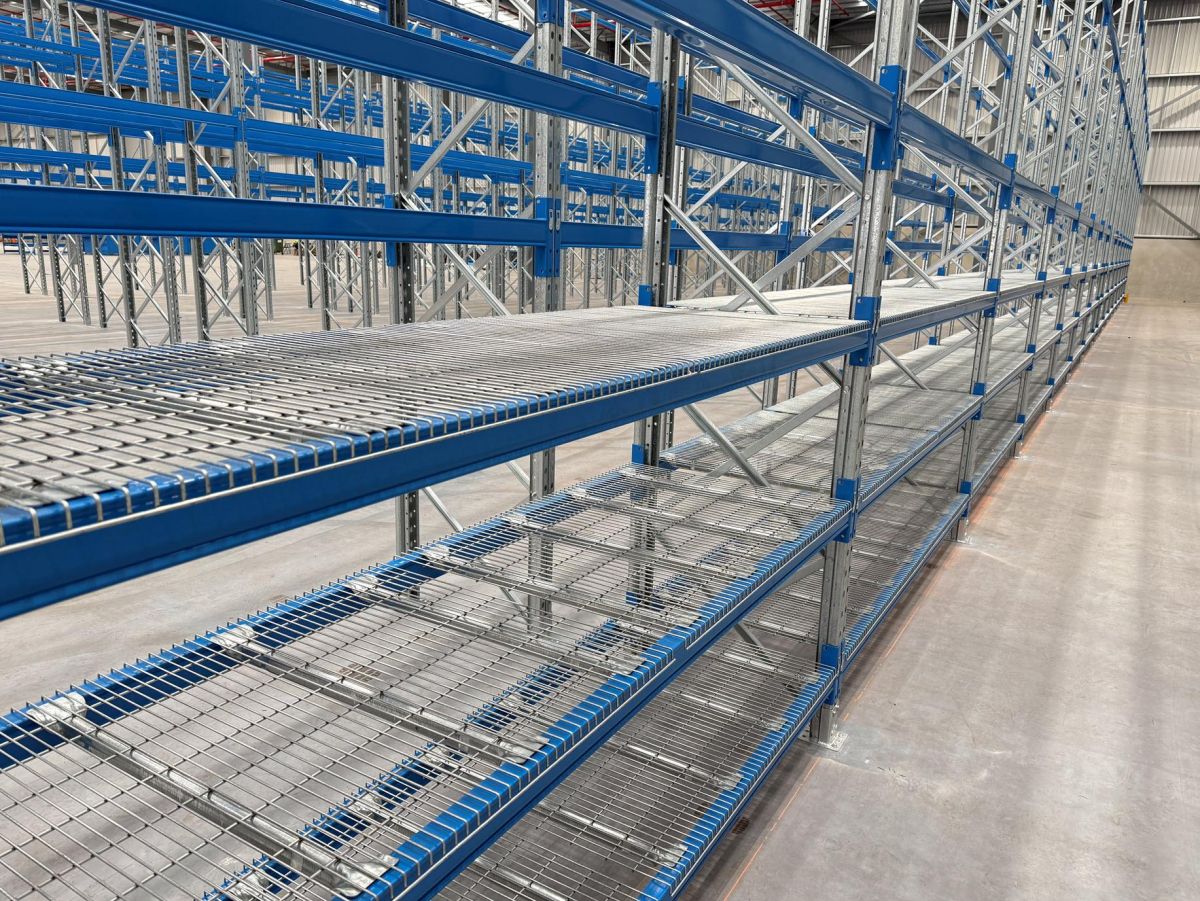

  • Particle board and mesh decks are available to create shelf levels in the rack
  • Offers first in, first out inventory management (FIFO)
  • Ensures good stock rotation
  • Accessories available to accommodate unit load type

Technical Specifications

Frame Heights (mm)

Frame Heights are available in 75mm increments.

Our local manufacturing capabilities enable us to produce frame heights to suit your requirements.

Frame Depths (mm)

450mm, 600mm , 840mm, 1050mm & 1200mm.

Our local manufacturing capabilities enable us to produce frame depths to suit your requirements.

Beam Spans (mm)

1370mm, 2585mm, 2750mm, 3040mm & 3900mm Standard Sizes

Beams can be manufactured to suit storage application

Finish

Frames: Galvanised

Beams: Powdercoated Blaze Blue

Warranty

Full Lifetime Warranty^

(^ “Lifetime” means the total period of Twenty (20) years)

Need something more custom?

Let us help you find the right solution.

Chat to one of our experts

Beam

Standard Beam

APC manufacture pallet racking beams in Perth, Western Australia.

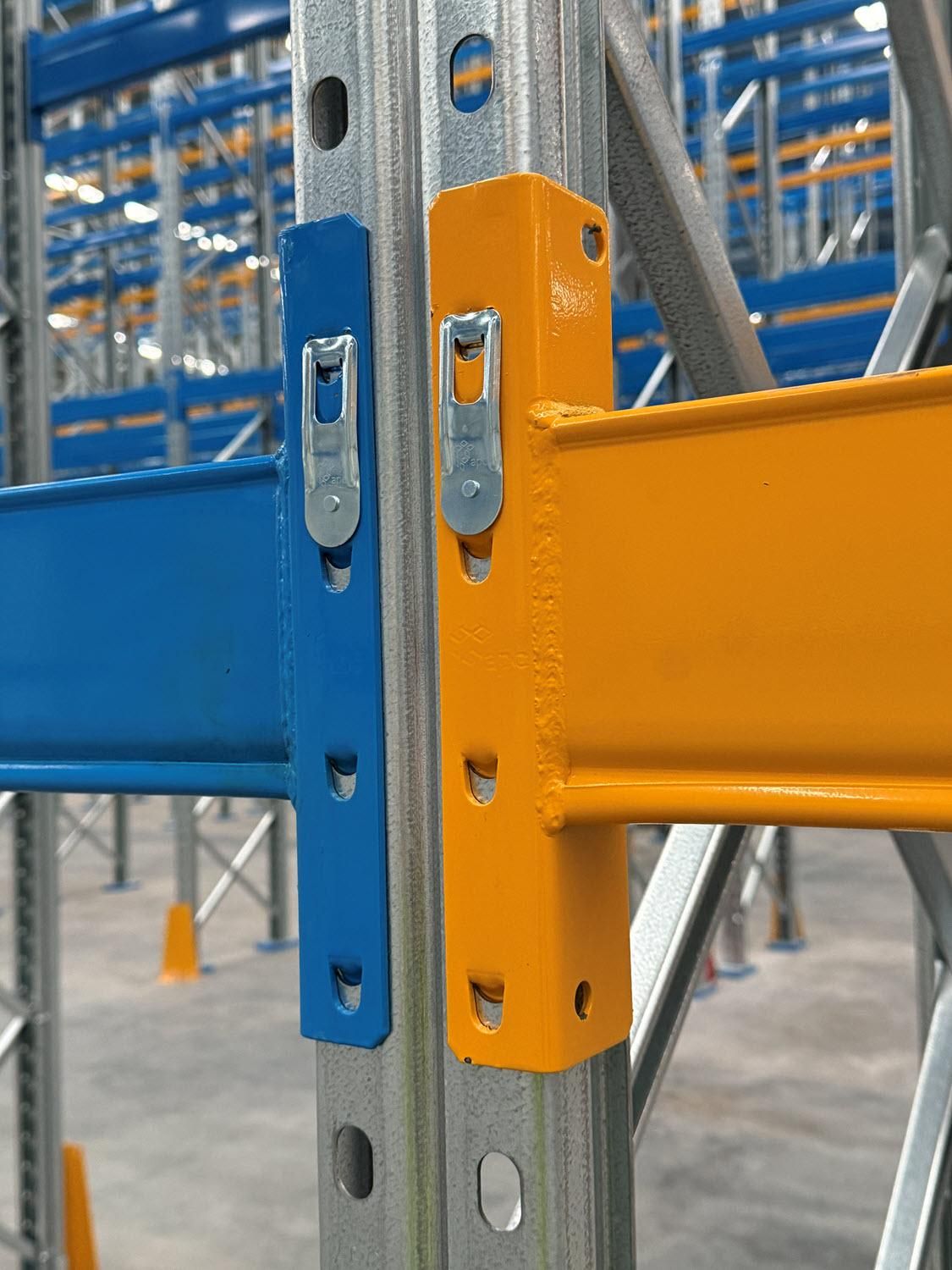

Our standard beam is double interlocking, crimped beam with a 1.5mm wall thickness. Pallet racking beam sizes range from 80mm in height through to 160mm in height, they are tailored for each project to suit the load requirement.

The beam is adjustable in 75mm increments, that can have 3 or 4 connectors to the upright (depending on the load applied). Standard finish is Blue, however other colours can be provided if the order volume is sufficient.
