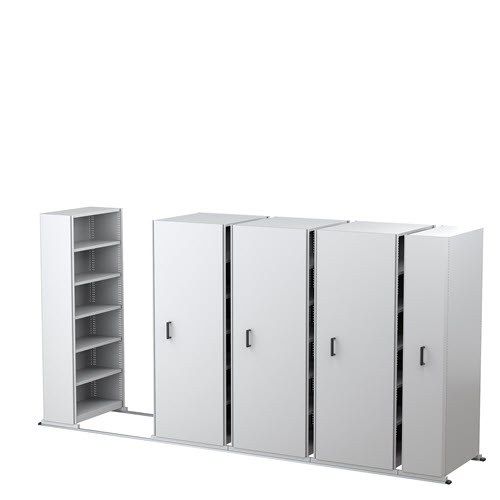

Ezi-Slide Aislesaver®
APC Ezi-Slide Aislesaver® - aka Compactus - mobile shelving system represents the ultimate refinement in push-pull high density storage.
Our manual (push-pull) Aislesaver, Ezi-Slide®, is a perfect light-weight mobile shelving system for any storage and filing application. Designed and manufactured in Australia, the Ezi-Slide Aislesaver® compactus incorporates low profile tracks, with discreet anti-tilt mechanism, to reduce the chance of operator strain and loads imposed on the floor. Users can move block-loads up to 1000kg. APC’s mobile shelving systems provide the ultimate usage of the available storage area and have a large range of standard sizes that can also be tailor-made to suit your specific needs.
Colours (Custom colours available upon request)
Cyber Grey
White Satin
Key Features & Benefits
- Low profile track system (wheelchair friendly)
- Easy to operate and move - compliant with OH&S Standards
- Strong and durable long lasting quality storage system
- Shelving designed to the Australian Standard (AS 2143-1978) & ASI Guide
- Modular - easily adapts to change and expansion
- Tracks do not require fixing, eliminating any damage to floor coverings
- Crinolin steel strips provide hard wearing runner surface for smooth operating
- Shelves can be adjusted in 25mm increments
- Australian Made
- 10 Year Warranty - Conditions apply
Technical Specifications
Bays are available in a combination of any of the height, width and depth options below.
| Height | 1875mm, 2175mm, 2375mm |
|---|---|
| Width | 750mm, 900mm, 1000mm, 1200mm |
| Depth | 300mm, 400mm, 450mm, 600mm |
| Drive Type | Manual, Push-Pull Operation |
| Track System | Low Profile – Above Floor |
| Shelving Accessory System | APC Uni-Shelf |
| Maximum System Width | 1800mm (2 x 900mm Bays) |
| Shelf Height | 30mm |
| Shelf Pitch | 25mm |
| Anti-Tilt System | Track and Runner Combination |
| Bay Load Capacity | 500kg UDL* |
| Shelving Load Capacity | Standard frames – Up to 1035kg UDL* Reinforced frames – Up to 1700kg UDL* *Shelf and bay load capacities vary, please contact APC for specific maximum loads based on final configurations |
Compliance
APC Ezi-Slide Aislesaver complies to the relevant standards and practices for steel shelving.
Australian Steel Institute
- ASI Industry Guide – Hand loaded steel shelving design and installation
Standards Australia
- AS/NZS 4600-2005 Cold-formed steel structures
- AS 4100-1998 Steel structures
- AS 4506-2005 Metal finishing – Thermoset powder coatings
- AS/NZS 2728-2007 Prefinished/Prepainted sheet metal products for exterior building applications – Performance requirements
- AS 3566.1-2002 Self drilling screws for the building and construction industries – General requirements and mechanical properties
- AS 4291-2000 Mechanical properties of fasteners made of carbon and alloy steels
- AS1110-2000 ISO metric hexagon bolts and screws – Product grades A and B
Storage Equipment Manufacturers Association (SEMA)
- Code of practice for the design of low rise static steel shelving
- Shelving users guide
European Federation of Materials Handling Associations
- FEM 10.2.06 Design of static steel shelving
Aislesaver Floor Track System
The Ezi-Drive Aislesaver uses an aluminium floor track system to guide the system wheels. Each track is laid on the floor surface and then the drive bays are placed into it.
Click on each image to see a full-sized version.
